WELD Ventura Street Wheel - Gloss Black Milled
17x8 | 5x127 / 4.5" BS (0mm) / No Beadlock
$415.00
Skip to product information

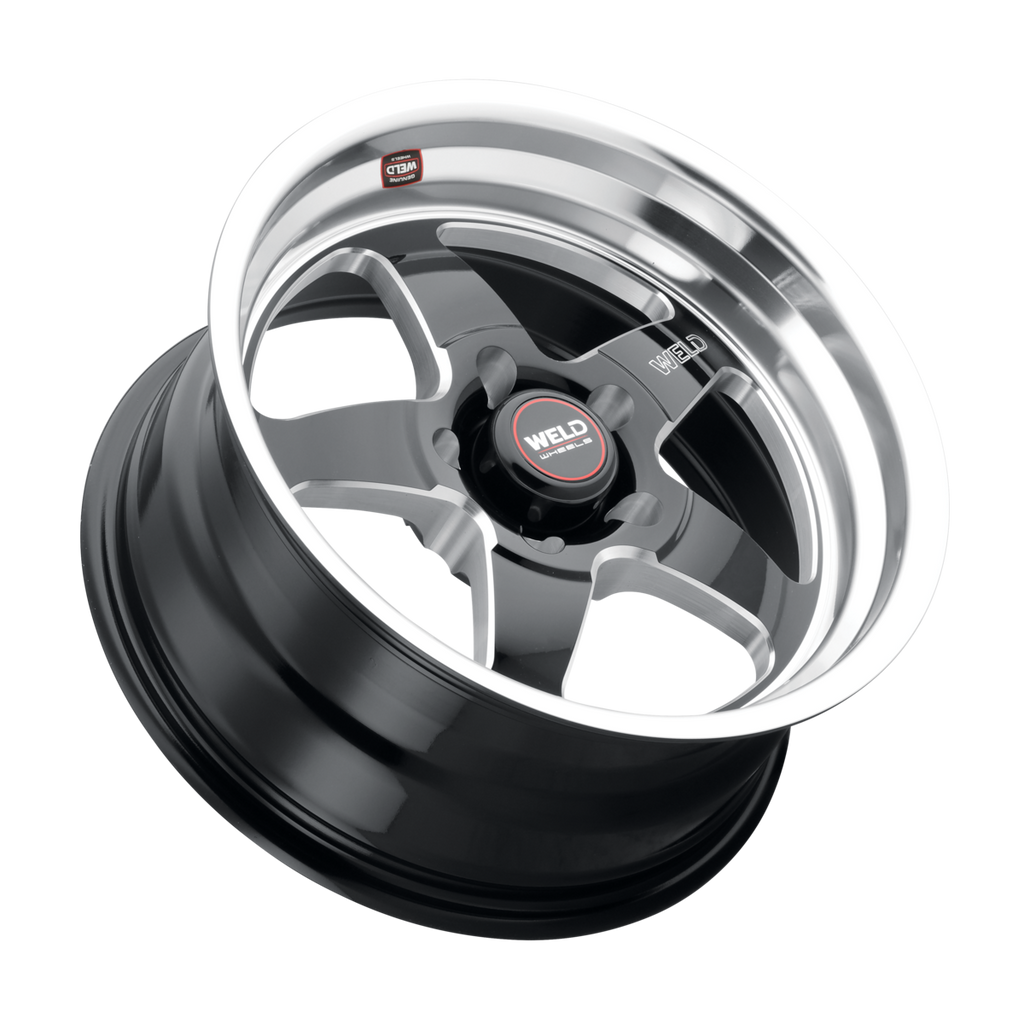

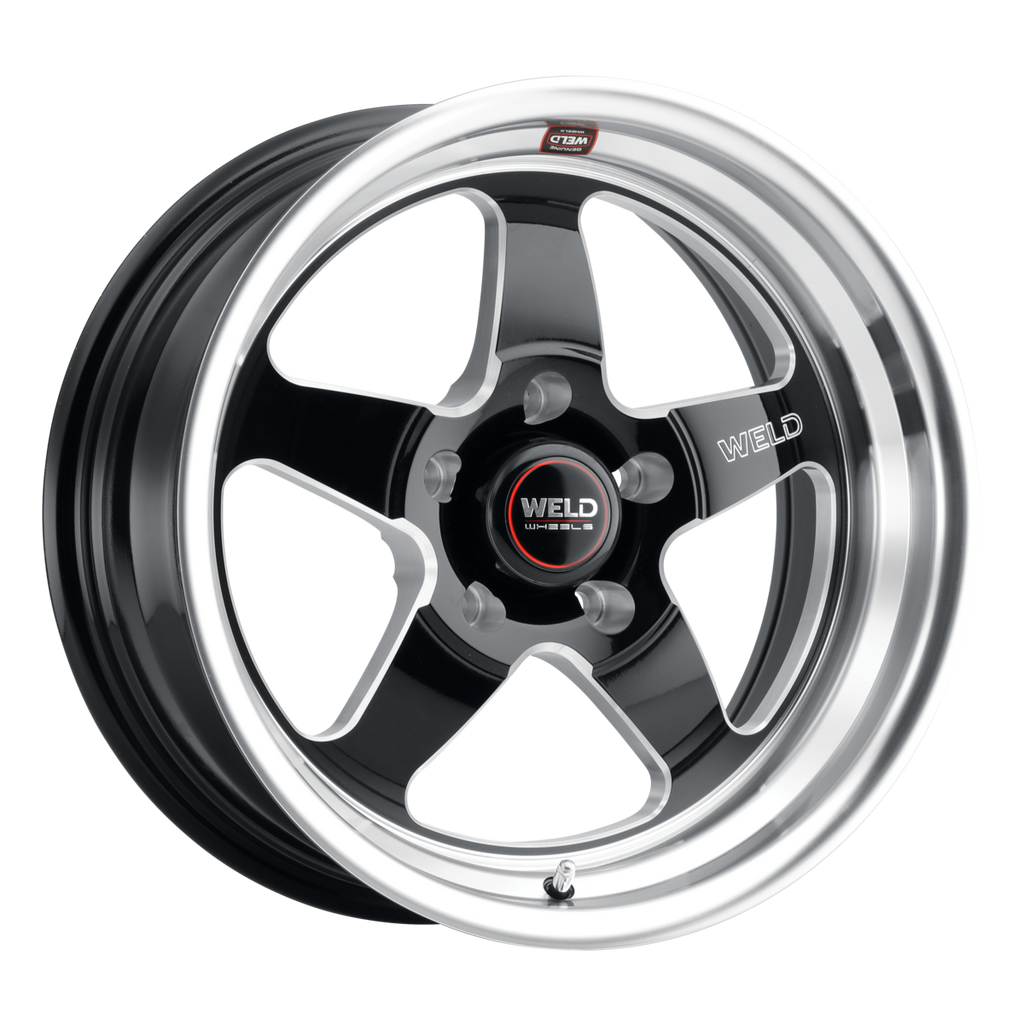

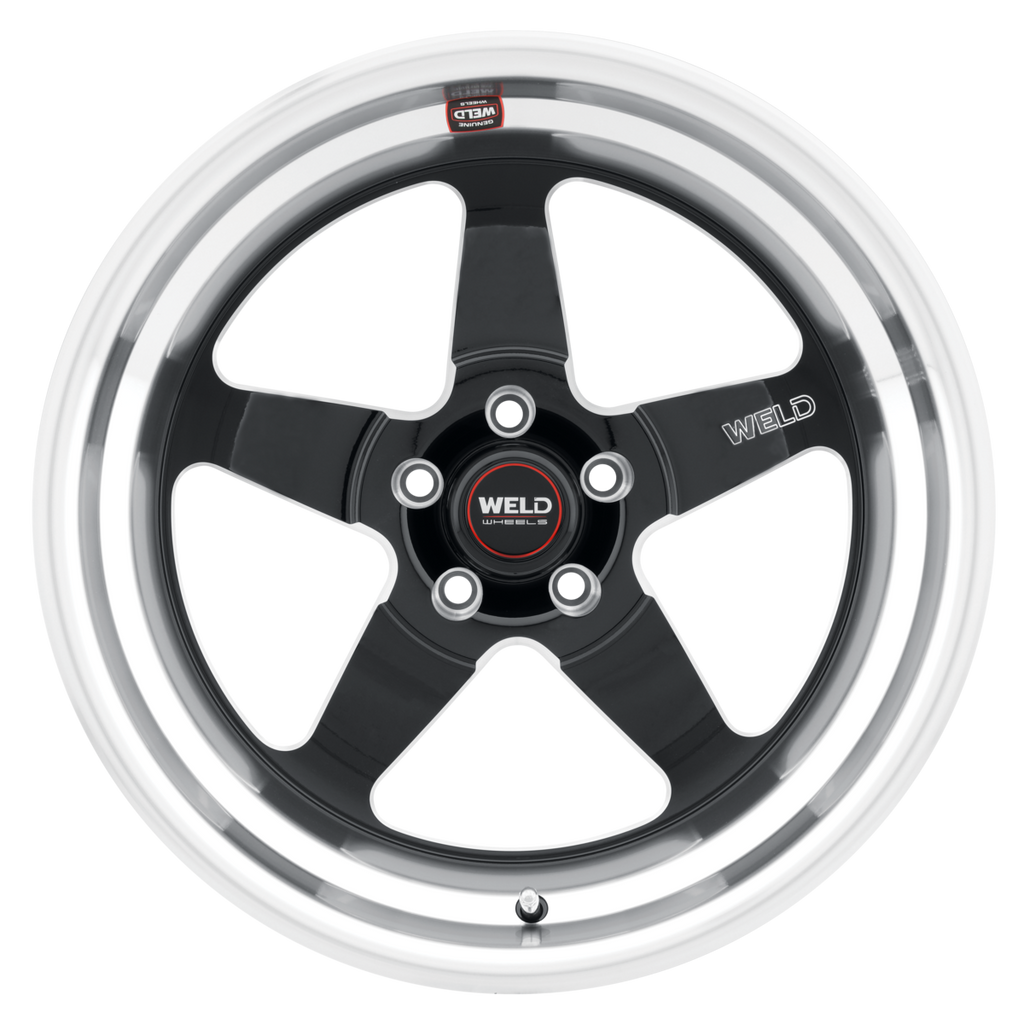

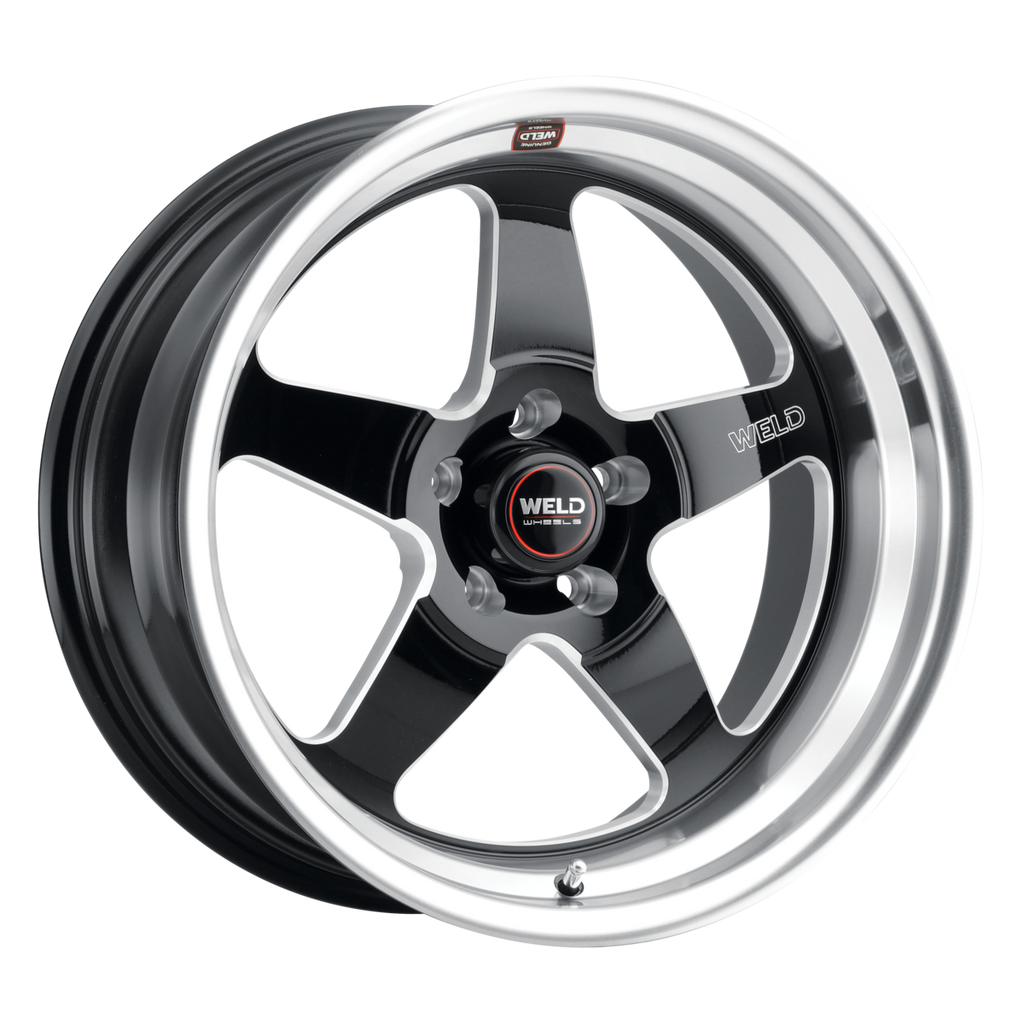

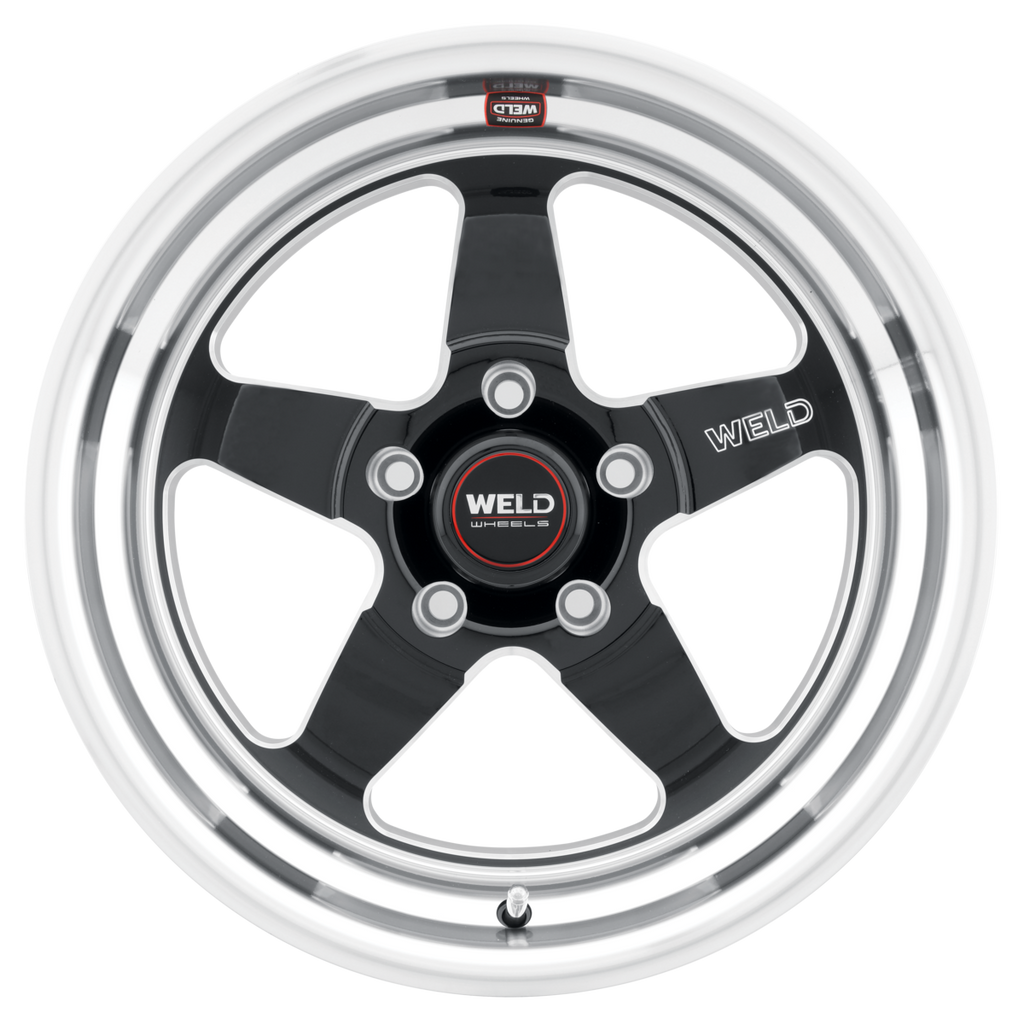

WELD Ventura Street Wheel - Gloss Black Milled
$415.00
New WELD Ventura Street wheels in Gloss Black Milled. Flow Form Aluminum 1-piece street and strip wheel from WELD's Performance RF series, available in 17", 18", 19", 20" and 22" diameters. Pick your size, backspacing and beadlock option above. Priced per wheel at WELD's advertised price.
Bolt patterns available for: Mustang (5x114.3); Challenger / Charger / 300 (5x115); 6th-gen Camaro / CTS-V (5x120); Camaro / Corvette / GM muscle (5x4.75); older GM / Jeep (5x5); Ram 1500 classic (5x5.5). Check your bolt pattern and backspacing before ordering, or call us.
SPECS: Sizes, Offset, Bolt Pattern & Backspacing
| Size | Bolt Pattern | Backspacing | Offset | Beadlock | Center Bore | Price / Wheel |
|---|---|---|---|---|---|---|
| 17x8 | 5x127 | 4.5" | 0mm | No Beadlock | 78.1mm | $415 |
| 17x9 | 5x120.65 | 6.8" | +45mm | No Beadlock | 70.3mm | $425 |
| 17x11 | 5x127 | 4.25" | -44mm | No Beadlock | 78.1mm | $460 |
| 17x11 | 5x139.7 | 4.25" | -44mm | No Beadlock | 87.1mm | $460 |
| 18x8 | 5x114.3 | 5.625" | +29mm | No Beadlock | 72.56mm | $440 |
| 18x8 | 5x120.65 | 4.5" | 0mm | No Beadlock | 78.1mm | $440 |
| 18x8 | 5x120.65 | 5.625" | +29mm | No Beadlock | 70.3mm | $440 |
| 18x8 | 5x127 | 4.5" | 0mm | No Beadlock | 78.1mm | $440 |
| 18x9 | 5x114.3 | 6.1" | +29mm | No Beadlock | 72.56mm | $455 |
| 18x9.5 | 5x114.3 | 6.4" | +29mm | No Beadlock | 72.56mm | $460 |
| 18x9.5 | 5x120.65 | 5.25" | 0mm | No Beadlock | 78.1mm | $460 |
| 18x9.5 | 5x120.65 | 6.4" | +29mm | No Beadlock | 70.3mm | $460 |
| 18x9.5 | 5x120.65 | 7.2" | +50mm | No Beadlock | 70.3mm | $460 |
| 18x9.5 | 5x127 | 5.25" | 0mm | No Beadlock | 78.1mm | $460 |
| 18x10 | 5x120.65 | 6.7" | +30mm | No Beadlock | 70.3mm | $465 |
| 18x10 | 5x120.65 | 7.15" | +42mm | No Beadlock | 72.56mm | $465 |
| 18x10.5 | 5x114.3 | 7.75" | +50mm | No Beadlock | 72.56mm | $480 |
| 18x10.5 | 5x120.65 | 7.9" | +54mm | No Beadlock | 70.3mm | $480 |
| 18x10.5 | 5x120.65 | 8.25" | +64mm | No Beadlock | 70.3mm | $480 |
| 18x11 | 5x120.65 | 7.69" | +43mm | No Beadlock | 72.56mm | $485 |
| 19x9 | 5x114.3 | 6.4" | +35mm | No Beadlock | 72.56mm | $525 |
| 19x9 | 5x120 | 6.5" | +38mm | No Beadlock | 72.56mm | $525 |
| 19x9.5 | 5x114.3 | 6.4" | +30mm | No Beadlock | 72.56mm | $530 |
| 19x9.5 | 5x120.65 | 7.2" | +50mm | No Beadlock | 70.3mm | $530 |
| 19x10 | 5x120.65 | 6.72" | +31mm | No Beadlock | 70.3mm | $530 |
| 19x11 | 5x114.3 | 8.2" | +56mm | No Beadlock | 72.56mm | $550 |
| 19x11 | 5x120.65 | 8.75" | +70mm | No Beadlock | 70.3mm | $550 |
| 19x12 | 5x120.65 | 8.46" | +50mm | No Beadlock | 70.3mm | $590 |
| 20x8 | 5x120.65 | 4.5" | 0mm | No Beadlock | 78.1mm | $565 |
| 20x8 | 5x127 | 4.5" | 0mm | No Beadlock | 78.1mm | $565 |
| 20x9 | 5x114.3 | 6.1" | +29mm | No Beadlock | 72.56mm | $595 |
| 20x9 | 5x115 | 5.75" | +20mm | No Beadlock | 71.5mm | $595 |
| 20x9 | 5x115 | 6.5" | +38mm | No Beadlock | 71.5mm | $595 |
| 20x9 | 5x120 | 6.1" | +29mm | No Beadlock | 72.56mm | $595 |
| 20x9 | 5x120 | 6.5" | +38mm | No Beadlock | 72.56mm | $595 |
| 20x9.5 | 5x120.65 | 5.25" | 0mm | No Beadlock | 78.1mm | $605 |
| 20x9.5 | 5x127 | 5.25" | 0mm | No Beadlock | 78.1mm | $605 |
| 20x9.5 | 5x135 | 5.75" | +13mm | No Beadlock | 87.1mm | $605 |
| 20x10.5 | 5x114.3 | 7.75" | +50mm | No Beadlock | 72.56mm | $615 |
| 20x10.5 | 5x115 | 6.5" | +20mm | No Beadlock | 71.5mm | $615 |
| 20x10.5 | 5x120 | 7.25" | +38mm | No Beadlock | 72.56mm | $615 |
| 20x10.5 | 5x120.65 | 6.25" | +13mm | No Beadlock | 78.1mm | $615 |
| 20x10.5 | 5x120.65 | 8.3" | +65mm | No Beadlock | 70.3mm | $615 |
| 20x10.5 | 5x127 | 6.25" | +13mm | No Beadlock | 78.1mm | $615 |
| 20x11 | 5x120 | 7.6" | +40mm | No Beadlock | 72.56mm | $620 |
| 20x11 | 5x135 | 7" | +25mm | No Beadlock | 87.1mm | $620 |
| 20x12 | 5x120.65 | 8.5" | +50mm | No Beadlock | 70.3mm | $640 |
| 22x8.5 | 5x120.65 | 5" | +6mm | No Beadlock | 78.1mm | $650 |
| 22x8.5 | 5x127 | 5" | +6mm | No Beadlock | 78.1mm | $650 |
| 22x10.5 | 5x120.65 | 6.25" | +13mm | No Beadlock | 78.1mm | $705 |
| 22x10.5 | 5x127 | 6.25" | +13mm | No Beadlock | 78.1mm | $705 |
| 22x12 | 5x127 | 4.25" | -57mm | No Beadlock | 78.1mm | $755 |
| 22x12 | 5x127 | 6.75" | +6mm | No Beadlock | 78.1mm | $755 |
Need help with fitment? Call (559) 627-8664.
- Priced per wheel. Order 4, or 2 fronts + 2 rears for a staggered drag setup
- Free shipping to the lower 48 states
- Financing available: pay over time or lease-to-own with Affirm, Synchrony, Snap Finance, Kafene or American First. See financing options
- Want them mounted on drag radials or street tires? Call (559) 627-8664 for a wheel & tire package.
Ships from our WELD distributor; most sizes ship in a few business days. We'll confirm availability after you order. Tires not included.
Sold by Pacific Tire & Wheel, 1001 E. Main St, Visalia, CA, an authorized WELD dealer.
